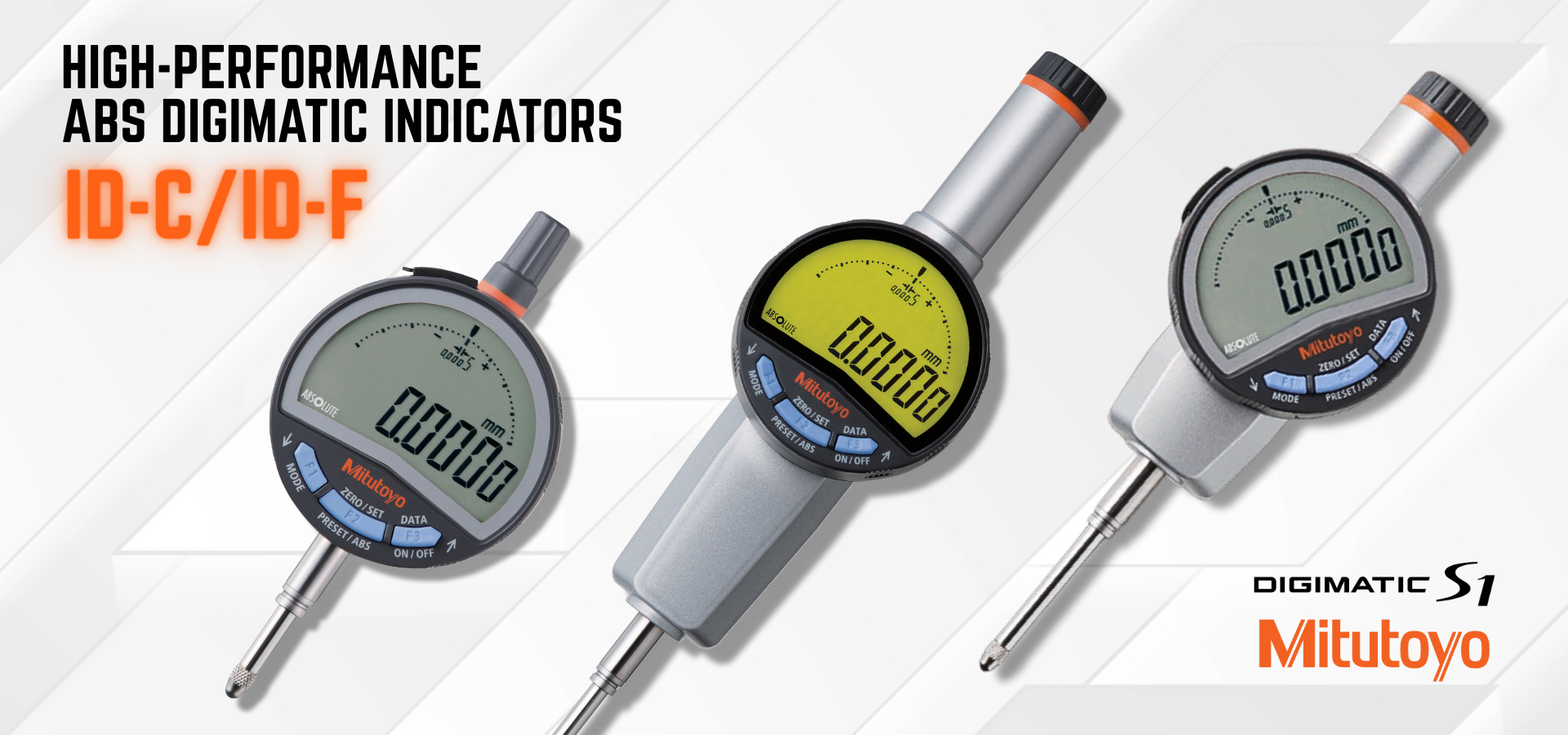

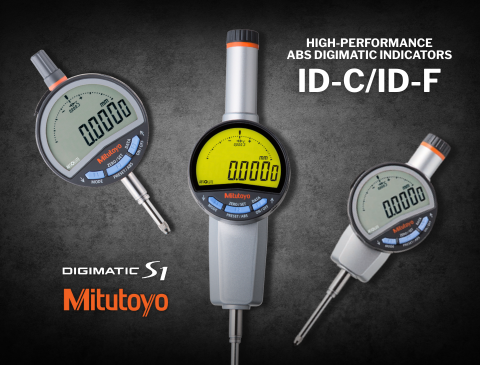

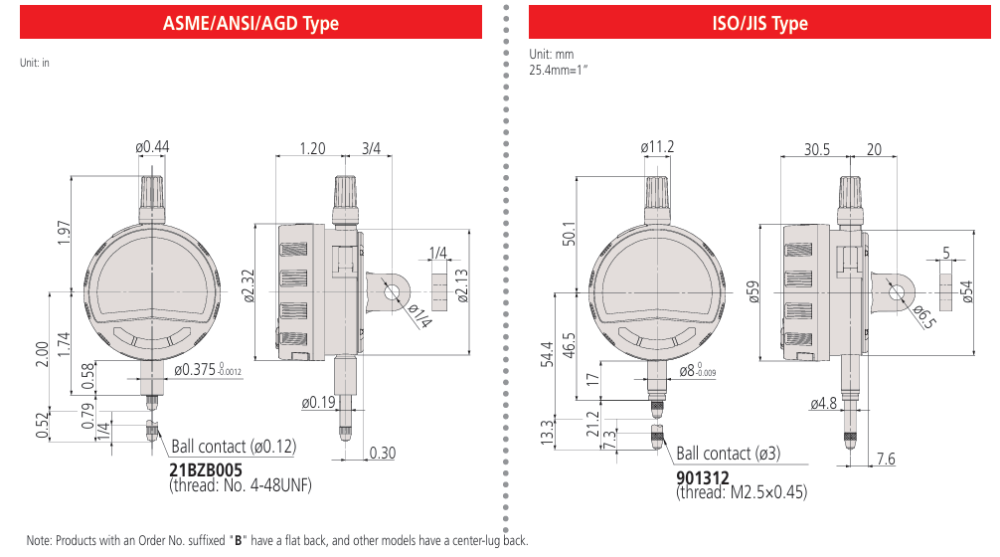

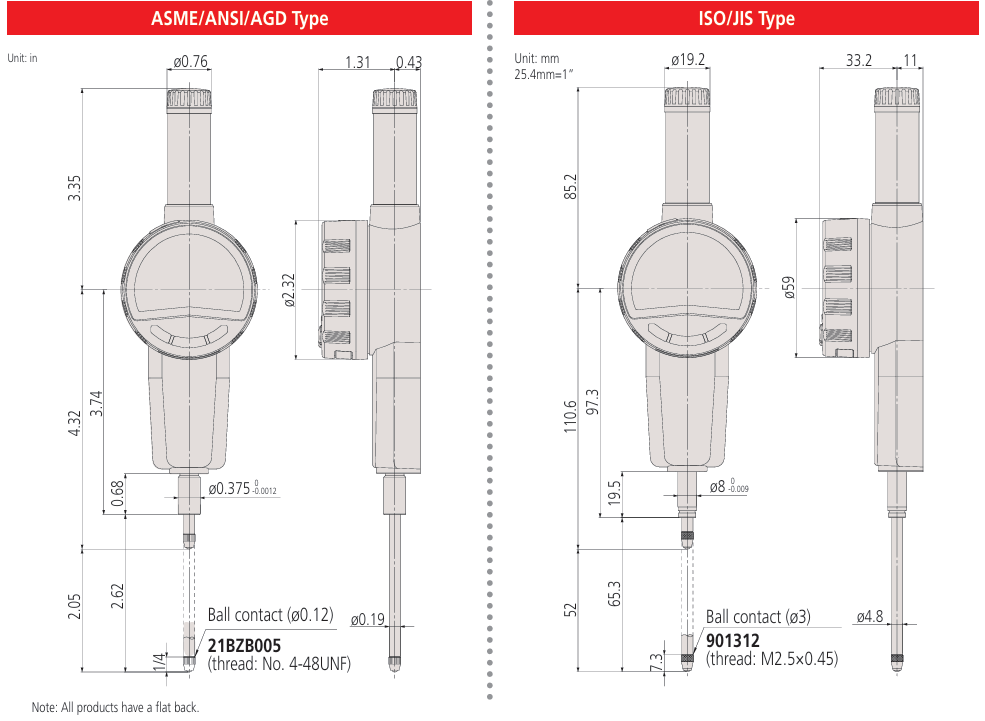

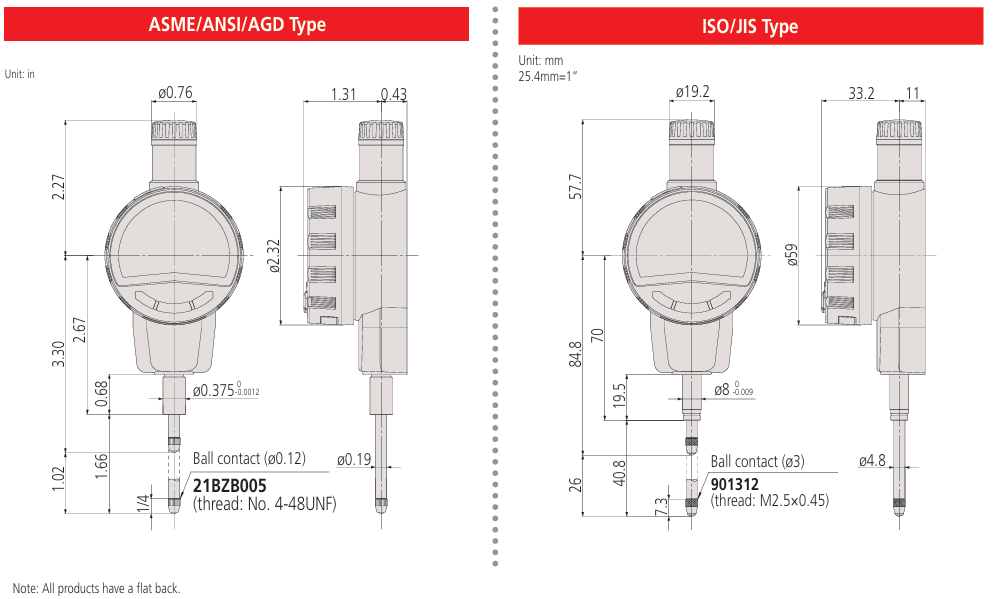

High-performance ABS Digimatic Indicator ID-C/ID-F

New-generation ID series making measurement operations smoother and enhancing production quality

Enabling more precise measurement

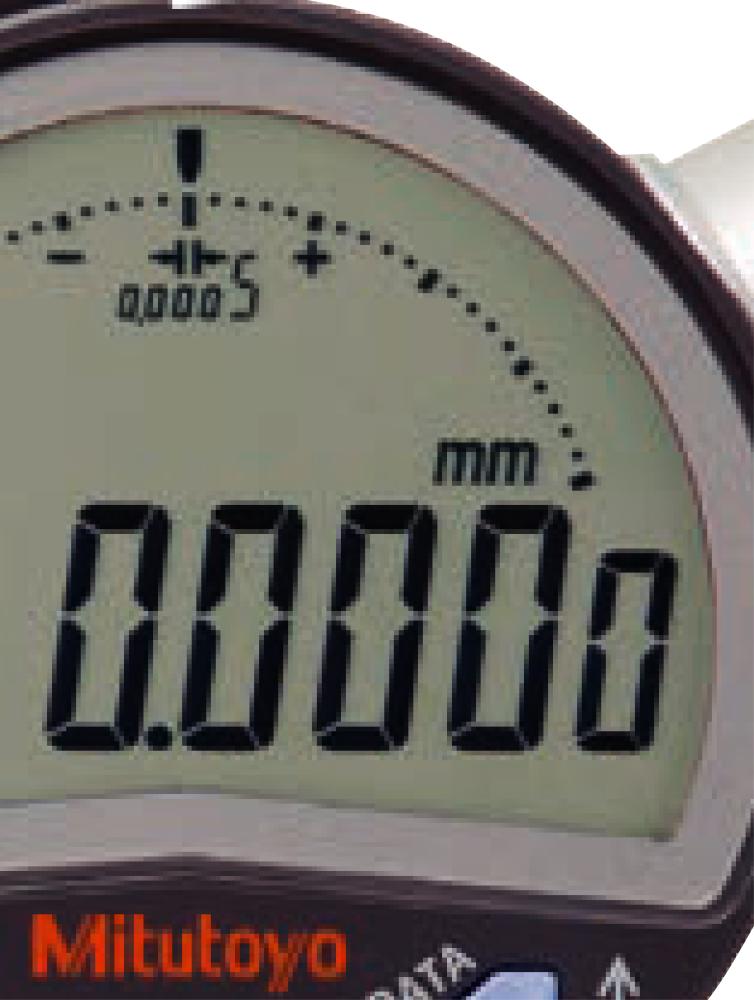

0.5 μm resolution

The ID-C and ID-F ranges now include models with 0.0005 mm resolution. The units are also capable of resolution switching.*
* Except for the ID-C 0.01 mm resolution model

Avoid missing a pending calibration
Calibration period notification function

The LCD displays an icon to notify the user when the set calibration time approaches. This facilitates the proper precision management of ID-C/ID-F.

The calibration period notification icon starts blinking at a set time before calibration is due (e.g. 1 week before the calibration date). If the deadline is exceeded, the entire screen starts blinking to notify the user

The first Mitutoyo measuring tools to support bidirectional serial communication. Dramatically improve work efficiency by connecting and linking with a PC.

The ID-C/ID-F units are Mitutoyo’s first measuring tools to support bidirectional serial communication.* They can be easily connected and linked with a PC via a USB input tool, etc., and in addition to conventional measurement data collection, they also enable control and setting of the ID-C/ID-F units, collection of gauge information, and other operations to be performed in batch from the PC. This contributes to drastic improvement in work efficiency.

*Achieved through I/F compatible with an original bidirectional serial communication specification (Digimatic S1). See P.6 for details.
An optional cable and measurement data input unit are required for bidirectional serial communication. USB-ITPAK V3.0 must be installed on the PC used for communication.

Function example (1) Control of ID-C/ID-F from PC

Function example (2) Measuring instrument setting

New model
(ID-C/ID-F + USB-ITPAK V3.0)

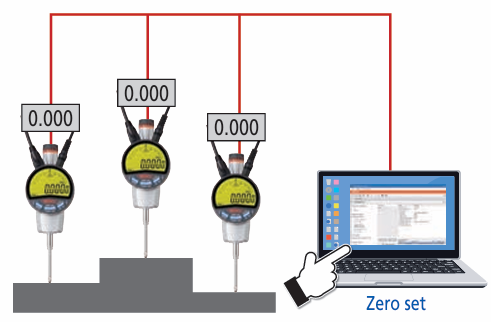

-Batch zero setting and power ON/OFF operation, etc. of multiple ID-C/ID-F units is made possible by use of the dedicated software “USB-ITPAK.”

New model
(ID-C/ID-F + USB-ITPAK V3.0)

-Various functions of ID-C/ID-F units can be set from USB-ITPAK.
-The contents of various function settings can be saved on a PC, and the same settings can be copied to other ID-C/ID-F units.
➡ Reduced work time for setting

Old model
(Old ID-C/ID-F + USB-ITPAK V2.1)

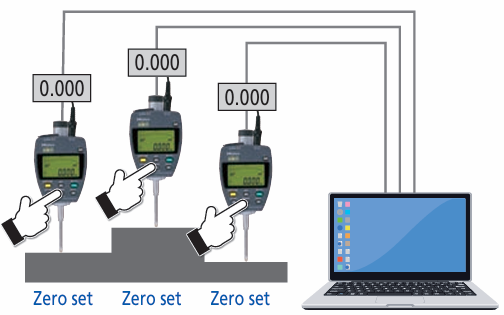

-For older ID-C/ID-F units that do not support bidirectional serial communication, zero setting must be performed individually on each unit.

Old model
(Old ID-C/ID-F + USB-ITPAK V2.1)

-Since bidirectional serial communication is not supported, function setting from a PC is not possible.

Improved work efficiency thanks to excellent readability
Large screen and analog bar

The units have large screens that can display various information in an easy-to-read manner. They also have an analog bar, convenient for observing subtle movements such as the approach to tolerance.

Setting of frequently used functions for easy operation
Three large buttons

Ease of use is greatly improved by three large buttons. You can freely set any frequently used functions to these buttons.

1 Parameter setting mode
• Counting direction switching
• Tolerance judgment function setting • Resolution switching
• Calculation function setting • Function lock setting
2 Switching between ABS length measurement system
(presetting) and INC length measurement system (zero setting)
3 Power ON/OFF
• Data output (when connected to an external device)
• Data hold (when not connected to an external device)

Improved measurement work efficiency
Simple calculation function

The result of the spindle movement value multiplied by the calculation coefficient can be displayed in real time. This reduces the work of measuring with a jig or similar tool.

f(x) = Ax
f(x): Displayed value
x: Spindle movement value
A: Selected value
